Main parameter of full automatic chain link machine

1.Width scope of weaving: 1-4m

2.The machine is controlled by PLC automatic controller, so only one person is needed to operate it

3.The output per minute: for example: If the mesh is 50x50mm, width: 2m, the output will be: 1M² min.

4.Suitable wire to the machine: the tensile scope of the wire 300-500N/M²

5.Use compacting machine to make it into rolls

6.Total power of equipment 11kw

7.Weight of equipment: 4200kg

8.Outside size: main machine: 6700x1430x1800mm

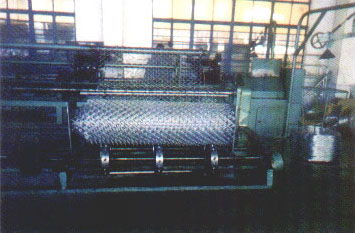

AHC03/80-4 Full-Automatic Chain Link Machine
