Wire Mesh Product

Shuttless Weaving Machine

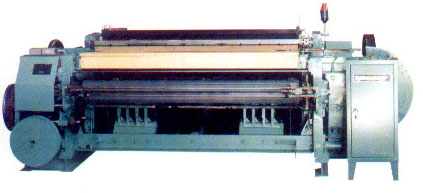

AHW-1600A Shuttless Weaving Machine

Main Parameter

I. Width of fabric: max.1600mm

II. Thickness of fabric:

30-400mesh(square holes gauge) - 2800 mesh (special gauge)

III. Crank shaft rotating speed: 72 rpm

IV. Power of motor: 4 KW

Rotating speed of motor: 1420 rpm

V. Total weight: 3200 kgs

VI. Total measurement: 2930 x 3150 x 1270mm

AHW-1600B Shuttless Weaving Machine

Main Parameter

Scope of weaving: max.1600mm

Scope of mesh:

Square holes gauge: mesh 10-100/inch

Special mesh: mesh 40-350/inch

Crank shaft rotating speed: 53 r/m

Power of motor: 4 KW

Total weight: 6155 kgs

Total measurement: 2569 x 3535 x 1849mm
