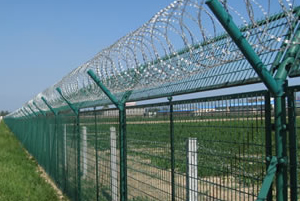

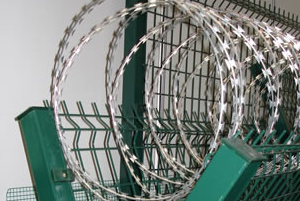

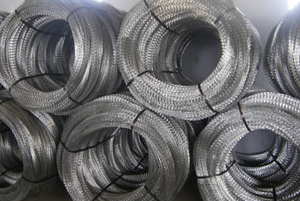

We can supply barbed wire, razor wire, concertina (also written as concertina coils) and other barbed tape obstacles for security fencing. We are now exporting to the USA, Singapore and other countries.
|
Reference Number |
Blade Style |
Thickness |
Wire Dia |
Barb Length |
Barb Width |
Barb spacing |
|
BTO-12 |
 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-18 |
 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
BTO-22 |
 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
|
BTO-28 |
 |
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
|
BTO-30 |
 |
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
|
CBT-60 |
 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
|
CBT-65 |
 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
|
Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
|
450mm |
33 |
8M |
CBT-65 |
Single coil |
|
500mm |
41 |
10M |
CBT-65 |
Single coil |
|
700mm |
41 |
10M |
CBT-65 |
Single coil |
|
960mm |
53 |
13M |
CBT-65 |
Single coil |
|
500mm |
102 |
16M |
BTO-10.15.22 |
Cross type |
|
600mm |
86 |
14M |
BTO-10.15.22 |
Cross type |
|
700mm |
72 |
12M |
BTO-10.15.22 |
Cross type |
|
800mm |
64 |
10M |
BTO-10.15.22 |
Cross type |
|
960mm |
52 |
9M |
BTO-10.15.22 |
Cross type |
| Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel. Standard packages products are shown in the tables above, special specifications available on request. | ||||
